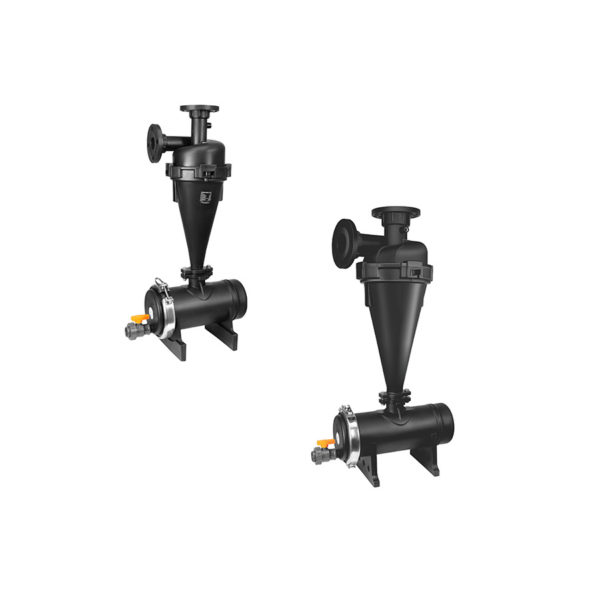

Features Body made of reinforced engineering plastic for durability. Hydro dynamically designed to create maximum centrifugal action. Dirt can be easily flushed out through drain port. Collector chamber can be easily cleaned by opening collector cover. Easy to Install and low maintenance. Specially designed High Wear Resistant Special Plastic inserted in the bottom of cone to avoid wear due to strong sand vortex. Available in: 50mm : AQ-144M 80mm : AQ-146M Material of Construction: Reinforced Polypropylene/Nylon Available Connections: BSPT Male Threaded / Flange / Victaulic Maximum Operating Pressure: 6 Kg/cm2 Model Intel/Outlet Inch/mm Rec. Range of Flow Rate, m3/hr Nominal Flow Rate m3/hr Dimensions (mm) Capacity of Underflow Chamber (Ltr) Gross Weight A B C D E 144M 2" /50 15-25 25 940 808 206 151 395 8 7.6 kg. 146M 3" / 80 35-50 50 990 868 248 175 395 8 9.4 kg. 990 868 248 175 482
